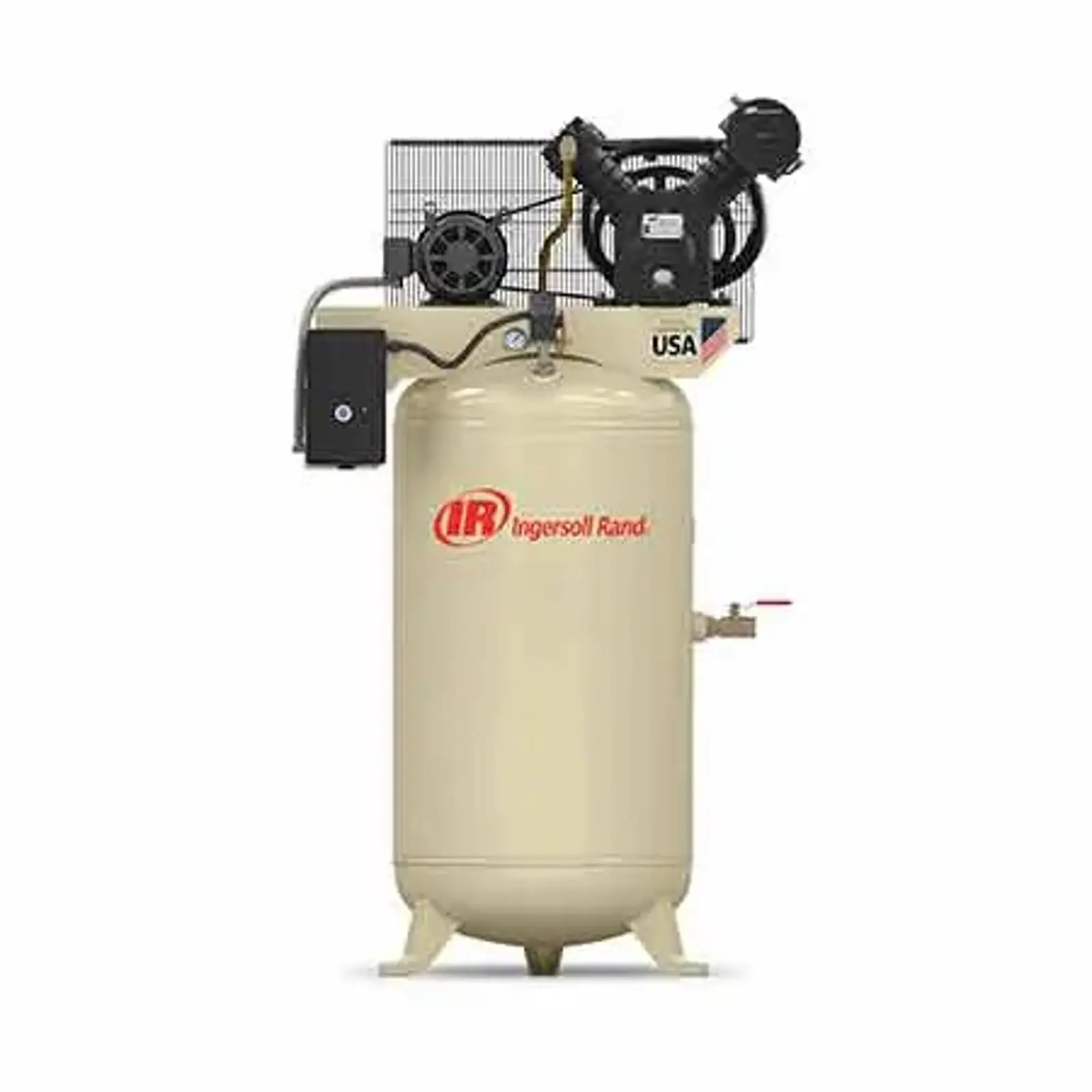

The Ingersoll Rand 2475N7.5 is a 7.5 HP two-stage electric reciprocating air compressor with an 80-gallon vertical tank, 175 PSI maximum pressure, and 24.3 CFM at 90 PSI for heavier shop air demand.
The Ingersoll Rand 2475N7.5 is a 7.5 HP two-stage electric reciprocating air compressor with an 80-gallon vertical tank, 175 PSI maximum pressure, and 24.3 CFM at 90 PSI for heavier shop air demand.
| Model | 2475N7.5 |
|---|---|
| Compressor Type | Two-stage electric reciprocating |
| Nominal Power | 7.5 HP |
| Tank | 80-gallon vertical |
| CFM @ 90 PSI | 24.3 |
| Flow at Max Pressure | 24 CFM |
| Max Pressure | 175 PSI |
| Voltage / Engine | 230/1/60; 200, 230, 460, 575/3/60 |
| Base Dimensions | 28″ L x 38″ W x 69″ H |
| Weight | 611 lb. |
| Weight | 611 lbs |
|---|---|
| Dimensions | 28 × 38 × 69 in |
| Equipment Subtype | Two-Stage Electric Air Compressor |
| CFM @ PSI | 24.3 CFM @ 90 PSI |
| Max PSI | 175 |
| Power Requirements | 230V / 1 Phase or 200-575V / 3 Phase |
