$4,349.00

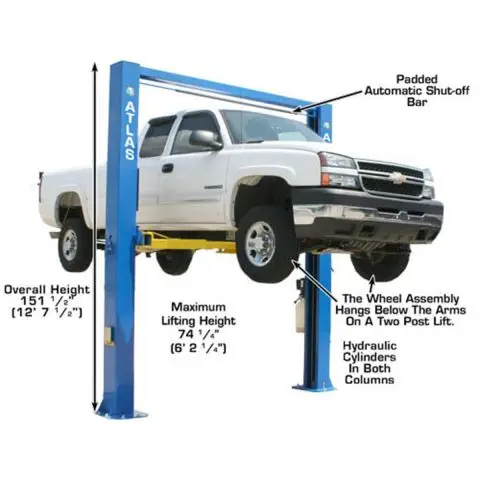

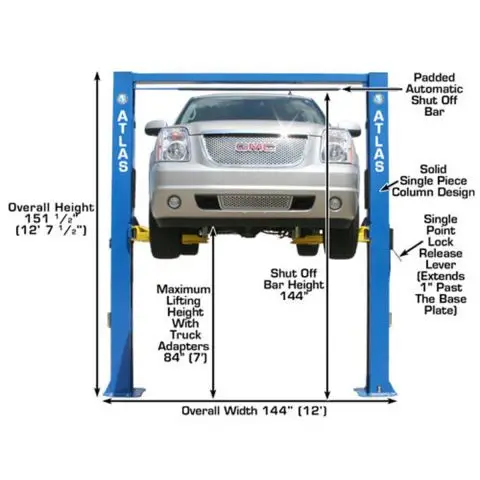

The Atlas Equipment – Two-Post Lift – OHX10000X is a 10,000 lb. extra-tall, extra-wide commercial overhead two-post lift for larger service bays working on everything from compact cars to one-ton diesel trucks.
The Atlas Equipment – Two-Post Lift – OHX10000X is a 10,000 lb. extra-tall, extra-wide commercial overhead two-post lift for larger service bays working on everything from compact cars to one-ton diesel trucks.
| Capacity | 10,000 lb. |
|---|---|
| Configuration | Extra-tall / extra-wide clearfloor |
| Overall Height | 152″ |
| Overall Floor Width | 144.375″ |
| Outside Column Width | 136″ |
| Inside Column Width | 118.25″ |
| Drive-Thru Width | 106.875″ |
| Max Lift Height Without Adapters | 74.75″ |
| Max Lift Height With Adapters | 85.75″ |
| Power Requirement | 220V / 1 Phase / 30A |
| Weight | 1665 lbs |
|---|---|
| Lift Type | Two-Post |
| Lifting Capacity (lb) | 10000.0 |
| Lifting Capacity Range | 10000-11999 lb |
| Max Rise (in) | 74.75, 85.75 |
| Max Lifting Height (in) | 74.75, 85.75 |
| Overall Width (in) | 144.375 |
| Overall Height (in) | 152.0 |
| Width Between Posts (in) | 118.25 |
| Drive-Thru Width (in) | 106.875 |
| Configuration | Extra-Tall Extra-Wide Clearfloor |
| Power Requirements | 220 V, 220V / 1 Phase / 30A |
