$3,299.00

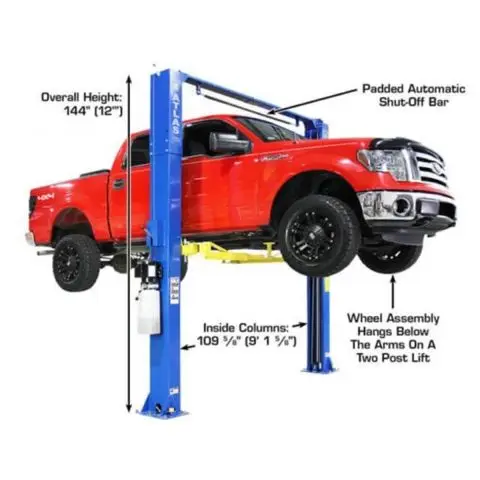

The Atlas Equipment – Two-Post Lift – PRO-9D is a 9,000 lb. overhead clearfloor two-post lift with symmetric/asymmetric arm positioning, direct-drive cylinders, and a padded overhead shut-off bar.
The Atlas Equipment – Two-Post Lift – PRO-9D is a 9,000 lb. overhead clearfloor two-post lift with symmetric/asymmetric arm positioning, direct-drive cylinders, and a padded overhead shut-off bar.
| Capacity | 9,000 lb. |
|---|---|
| Configuration | Clearfloor / symmetric-asymmetric |

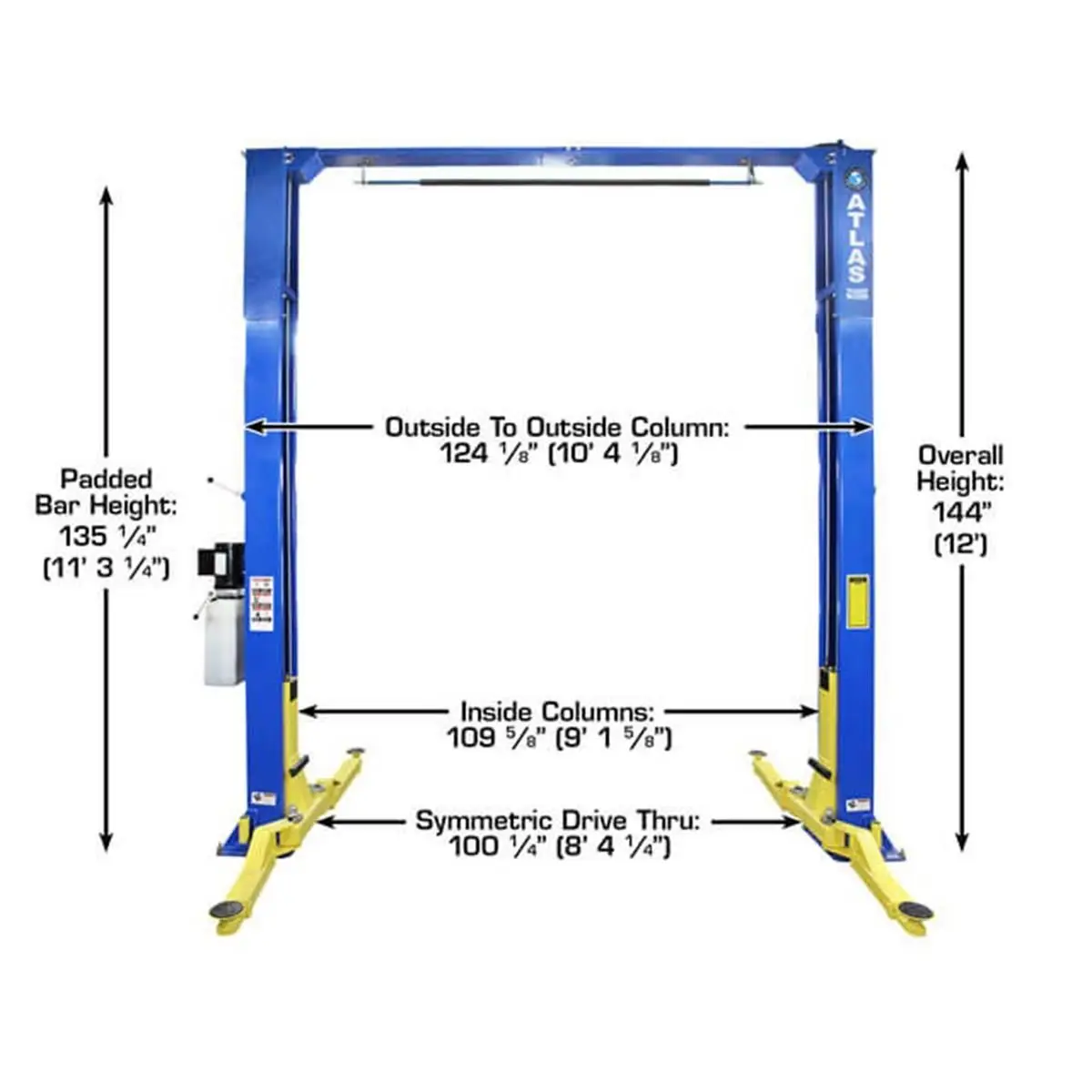

| Overall Height | 144″ |

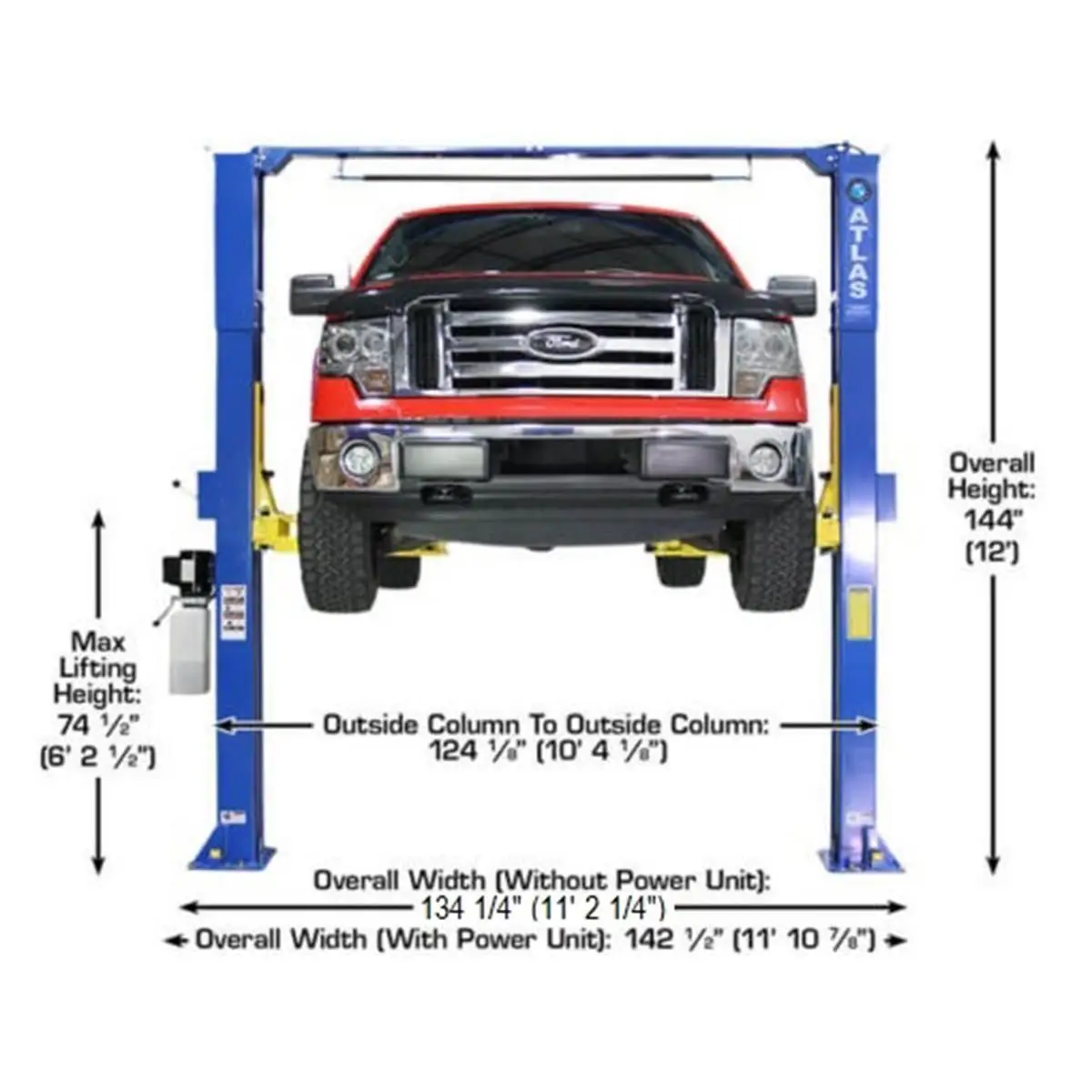

| Overall Width With Power Unit | 142.5″ |
| Overall Width Without Power Unit | 133.875″ |
| Inside Column Width | 109.625″ |
| Drive-Thru Width | 100.25″ |
| Lift Height Without Adapters | 71.625″ |
| Max Lift Height With Adapters | 77.625″ |
| Power Requirement | 220V / 1 Phase / 30A |
| Weight | 1450 lbs |
|---|---|
| Lift Type | Two-Post |
| Lifting Capacity (lb) | 9000.0 |
| Lifting Capacity Range | 8000-9999 lb |
| Max Rise (in) | 68.0, 71.625, 74.5 |
| Max Lifting Height (in) | 77.625 |
| Overall Width (in) | 142.5 |
| Overall Height (in) | 144.0 |
| Width Between Posts (in) | 109.625 |
| Drive-Thru Width (in) | 100.25 |
| Configuration | Clearfloor / Symmetric-Asymmetric |
| Power Requirements | 220V, 220V / 1 Phase / 30A |
