$5,699.00

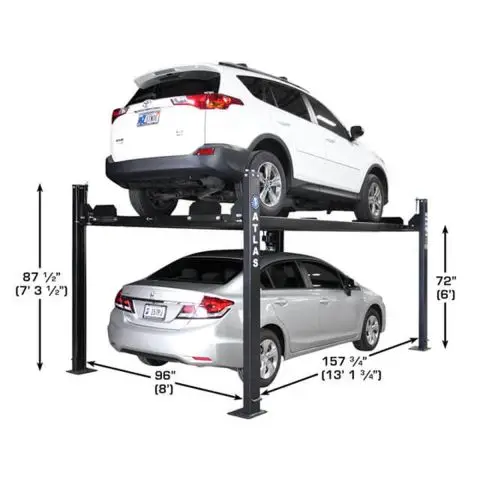

The Atlas Equipment – Parking Lift – Apex 8 is an ALI Certified 8,000 lb. four-post parking lift with 72 in. runway lift height, 207.8 in. overall length with ramps, and 18.67 in. runways.
Out of stock
The Atlas Equipment – Parking Lift – Apex 8 is an ALI Certified 8,000 lb. four-post parking lift with 72 in. runway lift height, 207.8 in. overall length with ramps, and 18.67 in. runways.
| Capacity | 8,000 lb. |
|---|---|
| Lifting Height to Top of Runway | 72″ |
| Clearance Under Runways | 67″ |
| Column Height | 86.625″ |
| Overall Width without Motor | 104″ |
| Overall Width with Motor | 114″ |
| Overall Length without Approach Ramps | 186.5″ |
| Overall Length with Approach Ramps | 207.8″ |
| Runway Width | 18.67″ |
| Manufacturer SKU | ATEATTD-APEX8-FPD |
| Weight | 2000 lbs |
|---|---|
| Lift Type | Four-Post |
| Lifting Capacity (lb) | 8000.0 |
| Lifting Capacity Range | 8000-9999 lb |
| Max Rise (in) | 72.0 |
| Overall Width (in) | 114.0 |
| Overall Length (in) | 207.8 |
| Overall Height (in) | 86.625 |
| Runway Width (in) | 18.67 |
| Configuration | ALI Certified Four-Post Parking |
