$6,895.00

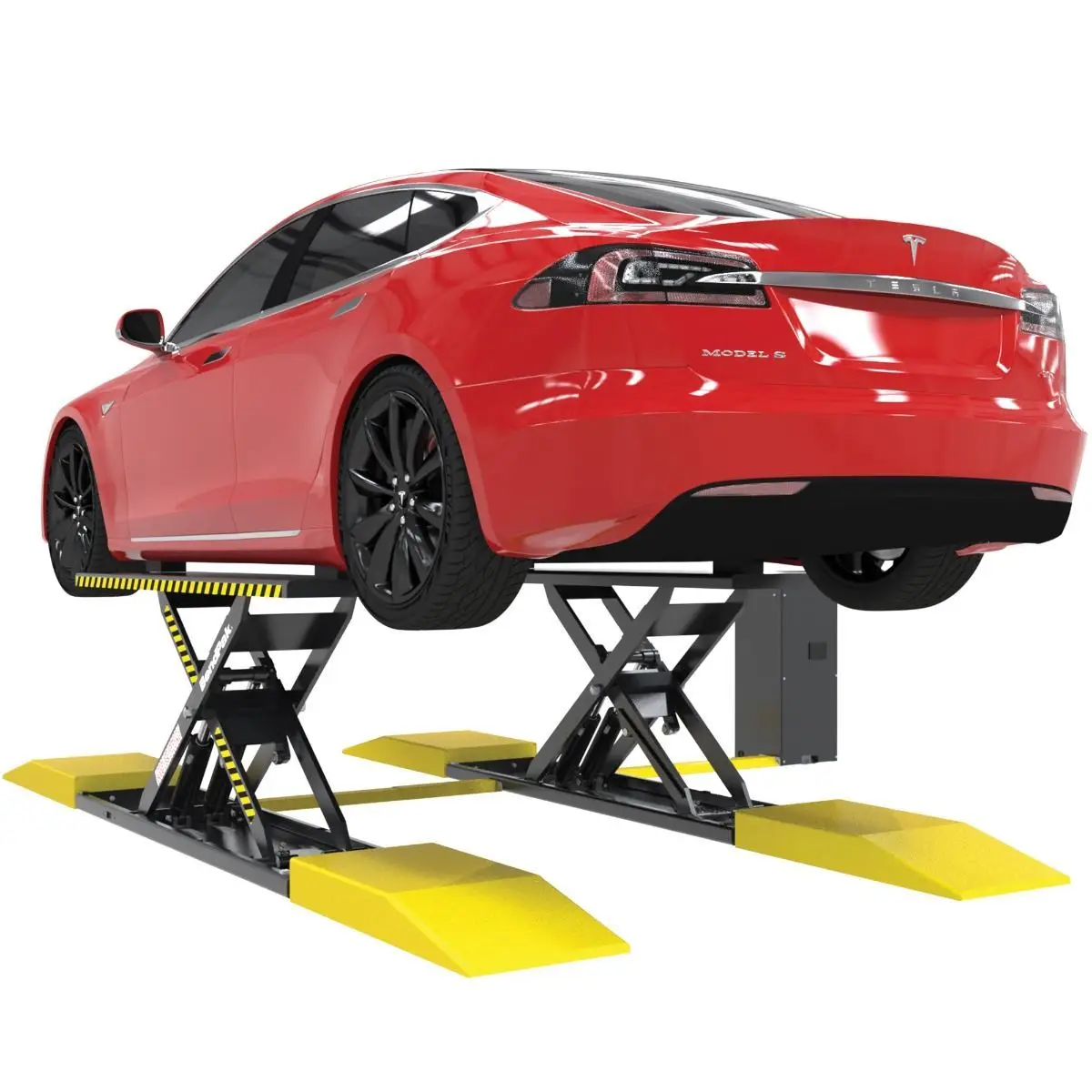

The BendPak – Scissor Lift – MDS-6EXT is a 6,000 lb. extended-platform open-center mid-rise scissor lift with 78.7 in. platforms, 36.75 in. lifting height, and adjustable 40-46 in. width between platforms.
The BendPak – Scissor Lift – MDS-6EXT is a 6,000 lb. extended-platform open-center mid-rise scissor lift with 78.7 in. platforms, 36.75 in. lifting height, and adjustable 40-46 in. width between platforms.
| Capacity | 6,000 lb. |
|---|---|
| Configuration | Extended-platform open-center mid-rise scissor lift |
| Lifting Height | 36.75″ |
| Lifting Height with Blocks | 38.25″ |
| Platform Dimensions | 19″ x 78.7″ |
| Width Between Platforms | 40″ to 46″ |
| Overall Length | 104.3″ |
| Lowered Height | 5.25″ |
| Lifting Time | 35 sec |
| Power | 208-230V / 60Hz / 1 Phase |
| Manufacturer SKU | 5175737 |
| Weight | 1748 lbs |
|---|---|
| Lift Type | Scissor |
| Lifting Capacity (lb) | 6000.0 |
| Lifting Capacity Range | 6000-7999 lb |
| Max Rise (in) | 36.75, 46.0, 47.5 |
| Max Lifting Height (in) | 38.25 |
| Overall Length (in) | 104.3, 67.0, 78.75 |
| Lift Time (sec) | 35.0 |
| Width Between Runways Min (in) | 40.0 |
| Width Between Runways Max (in) | 46.0 |
| Equipment Subtype | Extended-Platform Mid-Rise Scissor Lift |
| Power Requirements | 110 VAC / 1 Phase, 208-230V / 1 Phase, 230 VAC or 208-230 VAC / 1 Phase |
