$7,295.00

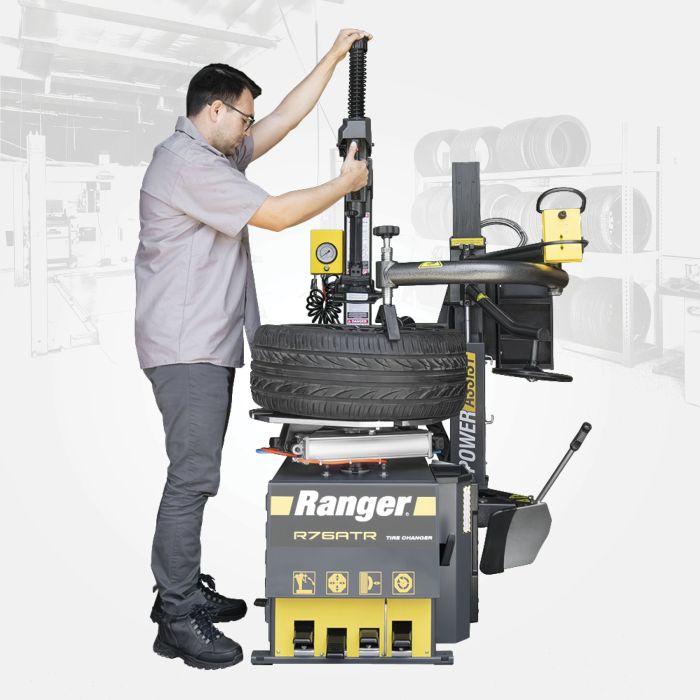

The Ranger – Tire Changer – R76ATR is a 220V tilt-back tire changer with single assist tower, TurboBlast bead sealing, and 30 in. internal clamping capability for high-volume tire service.
The Ranger – Tire Changer – R76ATR is a 220V tilt-back tire changer with single assist tower, TurboBlast bead sealing, and 30 in. internal clamping capability for high-volume tire service.
| Model | R76ATR |
|---|---|
| Motor | 3 HP / 208-240 VAC / 50-60 Hz / 1 Phase |
| Air Requirement | 140-165 PSI |
| Assist Tower | Single assist tower |
| Internal Rim Clamping | 10″ to 30″ |
| External Rim Clamping | 9″ to 28″ |
| Turntable Tire Width Capacity | 4″ to 18″ |
| Maximum Tire Diameter | 43″ |
| Wheel Service Equipment Type | Tire Changer |
|---|---|
| Equipment Subtype | Tilt-Back Tire Changer |
| Max Rim Diameter (in) | 30.0 |
| Max Wheel Width (in) | 18.0 |
| Max Wheel Diameter (in) | 43.0 |
| Air Requirement | 140-165 PSI |
| Power Requirements | 110 VAC / 2 HP, 208-240V / 1 Phase, 220 VAC / 3 HP |
