$10,595.00

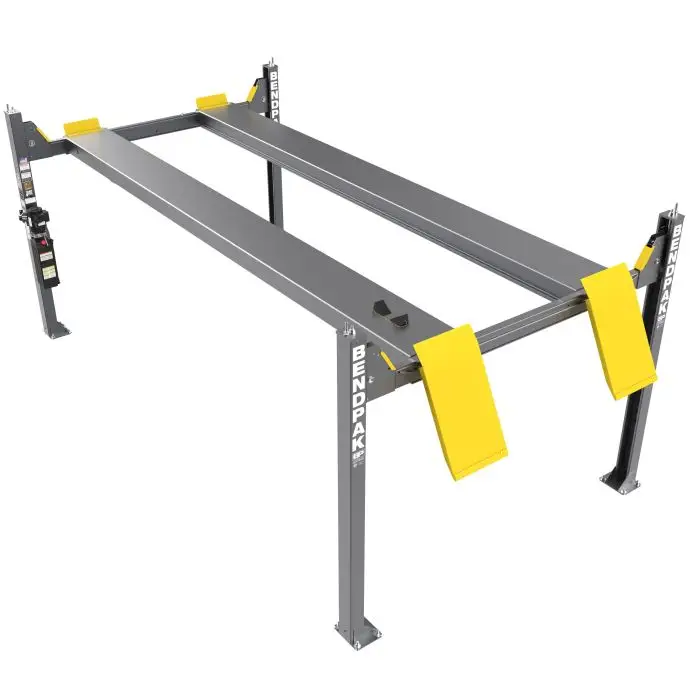

The BendPak – Four-Post Lift – HDS-14X is a 14,000 lb. extended-length commercial four-post service lift with longer runways for extended wheelbase trucks, SUVs, vans, and specialty vehicles.
The BendPak – Four-Post Lift – HDS-14X is a 14,000 lb. extended-length commercial four-post service lift with longer runways for extended wheelbase trucks, SUVs, vans, and specialty vehicles.
| Capacity | 14,000 lb. |
|---|---|
| Configuration | Extended-length four-post service lift |
| Max Rise | 69″ |
| Max Lifting Height | 77.5″ |
| Overall Width | 131.75″ |
| Overall Length | 271″ |
| Outside Length | 243″ |
| Column Height | 92″ |
| Width Between Columns | 120″ |
| Drive-Thru Clearance | 98″ |
| Runway Length | 229″ |
| Runway Width | 20″ |
| Lift Type | Four-Post |
|---|---|
| Lifting Capacity (lb) | 14000.0 |
| Lifting Capacity Range | 14000-15999 lb |
| Max Rise (in) | 69.0 |
| Max Lifting Height (in) | 77.5 |
| Overall Width (in) | 131.75 |
| Overall Length (in) | 271.0 |
| Overall Height (in) | 92.0 |
| Width Between Posts (in) | 120.0 |
| Drive-Thru Width (in) | 98.0 |
| Runway Length (in) | 229.0 |
| Runway Width (in) | 20.0 |
| Configuration | Extended Four-Post |
